WT SERIES
Ultra Slim, Ultra Fine Pitch Displays
| Specifications | |
| Pixel Pitch (mm): | 0.7, 0.9, 1.25 |
| Brightness (nits): | up to 800 |
| Application: | Install |
| Environments: | Indoor |
| IP Rating: | IP30 |
Key Features
- Ultra HD technology
- Ultra thin & lightweight
- Touch screen customisation available
- COB Flip-Chip technology
- Highly energy efficient
Ultra Slim, Ultra Fine Pitch Displays
The VuePix Infiled WT series embodies a comprehensive ultra HD display solution that integrates COB and flip-chip technologies. This fusion delivers exceptional performance whilst maintaining impressive energy efficiency.
Offering the finest pixel pitch of 0.7mm, the LED panels feature micro & mini LED chips with an ultra-high contrast ratio up to 100,000:1.
The WT series adopts a 16:9 standard display ratio, with a high refresh rate of 3,840Hz and outstanding 16-bit grayscale.
The ‘cold screen’ technology concept extends the screen life-span and takes the viewing experience to the next level. The WT series panels are extremely energy efficient, with one panel consuming significantly less power then traditional LED panels.
Producing extraordinary visuals in a state of the art sleek form, the VuePix Infiled WT series offers a perfect solution for conferences, TV studios, traffic control & monitoring centres, medical institutions, and other environments where an ultra-fine image and exceptional detail is required.
WT SERIES FEATURES
High Definition
All-in-one Solution
Ultra Lightweight
Thin Design
Extended Life-Span

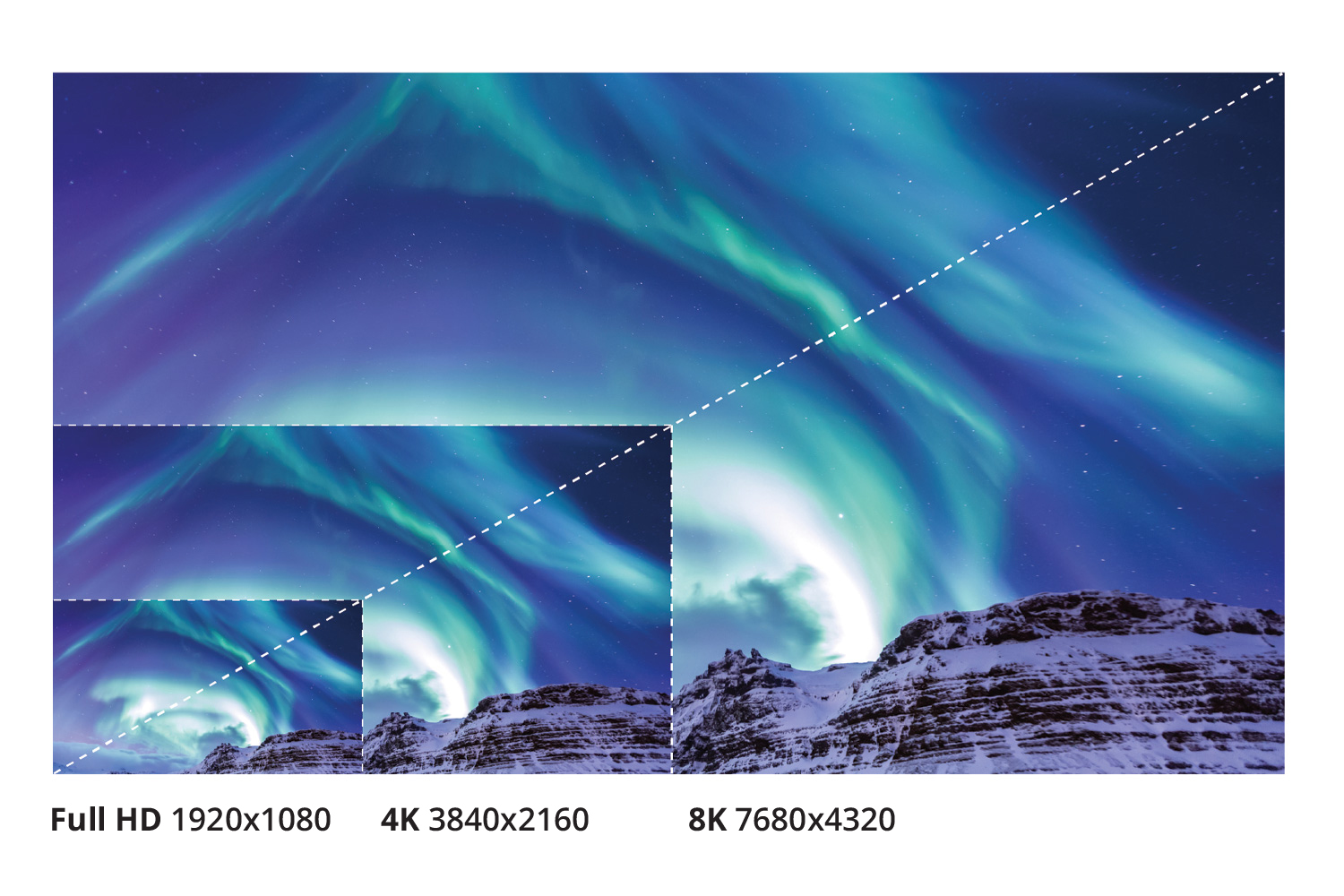

Ultra HD Technology
Utilising the ultra HD technology, the WT series produces an ultimate image quality and seamless performance of an outstanding 4.41T display colour and colour gamut (DCI coverage) of up to 95.97%. Micro LED chips deliver an ultra-high contrast ratio of up to 100,000:1.
16:9 Display Ratio
The WT series adopts a 16:9 standard display ratio. Touch interactive features are also available
Highly Energy Efficient
Each WT series panel consumes less than 346 W/sqm @ 600nits, with a black screen consuming less than 197.5 W/sqm.
COB Flip-Chip Technology
Combining COB & flip-chip technologies, the WT series displays offer extended screen life-span
and takes the viewing experience to the next level.

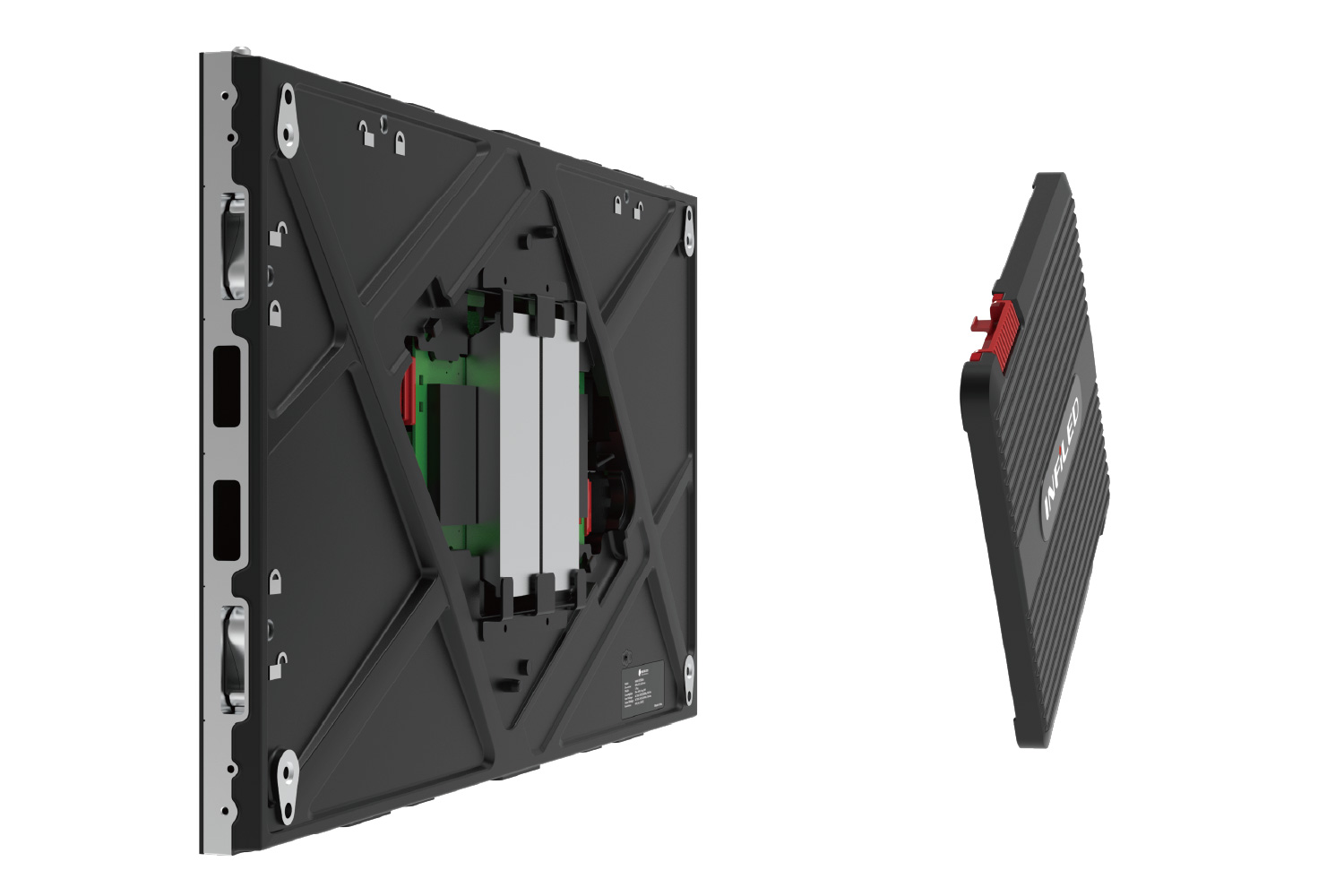

Ultra Thin & Lightweight
Each LED module is less than 0.05mm thin, with a cabinet thickness of 29mm.
Reliable Performance
The optional backup power and the signal loop guarantee your LED display will perform flawlessly.
PRODUCT SPECIFICATIONS
| Model | WT Indoor P0.7 M4 | WT Indoor P0.9 M4 | WT Indoor P0.9 COB | WT Indoor P1 COB |
| Series | WT | WT | WT | WT |
| Pixel Pitch (mm) | 0.78 mm | 0.93 mm | 0.93 mm | 1.25 mm |
| Environment | Indoor | Indoor | Indoor | Indoor |
| LED Configuration | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD |
| Max Brightness | 600 nits | 800 nits | 600 nits | 600 nits |
| Refresh Rate | ≤3,840 Hz | ≤3,840 Hz | 1920Hz ~ 3840Hz Hz | 1920Hz ~ 3840Hz Hz |
| Viewing Angle | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
| Cabinet Weight | 5.6 Kg | 5.6 Kg | 4kg±0.2kg Kg | 4kg±0.2kg Kg |
| Dimensions Width (mm) | 600 mm | 600 mm | 600 mm | 600 mm |
| Dimensions Height (mm) | 337.5 mm | 337.5 mm | 337.5 mm | 337.5 mm |
| Dimensions Depth (mm) | 29.4 mm | 29.4 mm | 29.4 mm | 29.4 mm |
| Cabinet Resolution | 768 x 432 Pixels | 640 x 360 Pixels | 640 x 360 Pixels | 480 x 270 Pixels |
| Max Power Consumption / m2 | 445 W/m² | 494 W/m² | 296 W/m² | 296 W/m² |
| Avg Power Consumption / m2 | 148 W/m² | 100 W/m² | 99 W/m² | 99 W/m² |
| Max Power Consumption / Panel | 90 W/panel | 100 W/panel | 60 W/panel | 60 W/panel |
| Avg Power Consumption / Panel | 30 W/panel | 33 W/panel | 20 W/panel | 20 W/panel |
| Transparency | N/A | N/A | N/A | N/A |
| Curving | N/A | N/A | N/A | N/A |
| Operating Power Source | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz |
| Operating Temperature | −10°C ~ +45°C | −10°C ~ +45°C | −10°C ~ +45°C | −10°C ~ +45°C |
| Ingress Protection | IP30 | IP30 | IP30 | IP30 |
| Verification | CE, FCC, ETL, ROHS, ETL | CE, FCC, ETL, ROHS, ETL | CE, FCC, ETL, ROHS, ETL | CE, FCC, ETL, ROHS, ETL |
| Application | Install | Install | Install | Install |
