WP Series

Immersive Fine Pitch Displays

Specifications
Pixel Pitch (mm):0.9 / 1.2 / 1.5 / 1.8 / 2.3 / 2.5 / 3.1
Brightness (nits):up to 1500
Application:Install
Environments:Indoor
IP Rating:IP30

Key Features

  • Ultra thin design
  • Ultra high definition
  • Rapid installation system
  • Slim line mounting brackets
  • Portability options
  • Easy front service access

Immersive Fine Pitch Displays

WP series is Vuepix Infiled’s flagship ultra-thin, ultra-high resolution digital LED display.

The all-in-one design of WP series panels offer the perfect solution for any installation requiring ultra-high definition. With a panel ratio of 16:9 and a pixel pitch ranging from 0.9mm to 3.1mm, configurations of 2K, 4K, and 8K resolution displays can be easily achieved with WP series.

With an ultra-thin edge thickness and an intuitive slim line mounting system, VuePix Infiled’s WP series offers high definition performance in a sleek form factor.

WP series features front service modules for efficient hassle free maintenance, resulting in minimal screen downtime.

With the highest quality LED components, superior image quality, and a sleek form factor, WP series is ready to transform any surface into an ultra-high definition digital canvas.

WP FEATURES

Ultra High Definition

Ultra Thin

Ultra Lightweight

Low Power Consumption

High Definition

Aspect Ratio

A panel ratio of 16:9 combined with fine pixel pitch allows for easy setup of Full HD, 4K and 8K resolution displays.

Easy Configuration

Easy setup for Full HD, 4K, and 8K screen resolutions.

Features

Easy Maintenance

WP series features front service LED modules for ease of access during maintenance.

The innovative suction tool prevents damage to the LED’s during maintenance.

Ultra-Thin

With an ultra-thin edge thickness and an intuitive slim line mounting system, VuePix Infiled’s WP series offers high definition performance in a sleek form factor.

WP series is up to 40% lighter than traditional LED cabinets, and lighter than large format LCD displays.

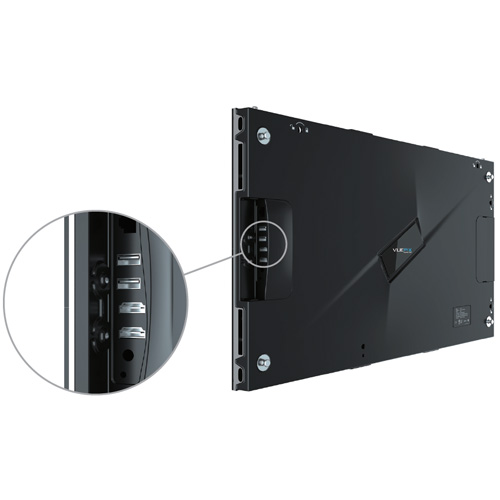

Control Solution

WP series can use traditional control solutions or local inputs and media players can be integrated into the unit to make it a complete standalone screen.

This is perfect for mobile digi-board solutions or for home theatre installations.

Portable HD DigiBoard

VuePix Portable HD DigiBoard provides you with a new level of flexibility when it comes to using LED screens for corporate events, indoor advertising and digital signage.

Our mobile DigiBoard is based on the VuePix Infiled revolutionary WP series, offering the latest ultra thin, ultra-light & ultra hi-res LED screen technology, now with the flexibility to use it anywhere and anytime! Simply wheel your DigiBoard to a desired location and you have a perfect digital medium to communicate your message to the audience.

The state of the art, slimline, versatile & portable screen comes in 2 different standard sizes of 108” or a 136” diagonally, with custom options available. Our Portable DigiBoard is designed to deliver superb visuals in any kind of indoor environment, including Conference rooms, Office Spaces, Hotels, Event Centres, Entertainment Venues, Hospitals, Schools & Universities and many more.

HIGH DEFINITION

• Native Full HD resolution
• 16:9 ratio

SUPER LIGHTWEIGHT

• Great flexibility & portability
• Just wheel it in!

ULTIMATE IMAGE QUALITY

• High refresh rate
• High grey scale & wide colour gamut

CLOUD & DUAL PLAY MODE

• Cloud & integrated control system
• Abundant interfaces, plug & play

SLEEK FORM FACTOR

• Slimline cable-free design
• Ultra-thin display

EASY SERVICE & MAINTENANCE

• Front maintenance access
• Magnetic vacuum suction tool

DOWNLOAD SPECIFICATION SHEET

PRODUCT SPECIFICATIONS

ModelWP Pro Indoor P0.9WP Pro Indoor P1.2WP Lite Indoor P1.2WP Pro Indoor P1.5WP Lite Indoor P1.5
SeriesWPWPWPWPWP
VersionProProLiteLiteLite
Pixel Pitch (mm)0.93 mm1.25 mm1.25 mm1.56 mm1.56 mm
EnvironmentIndoorIndoorIndoorIndoorIndoor
LED ConfigurationIMD 2x2SMD1010 black LED Flip chipSMD1010 black LED Flip chip3 IN 1 SMD3 IN 1 SMD
Max Brightness600 nits1000 nits800 nits1000 nits800 nits
Refresh Rate≤3,840 Hz≤3,840 Hz≤3,840 Hz≤3,84 Hz≤3,84 Hz
Viewing Angle160 / 160160 / 160160 / 160160 / 160160 / 160
Cabinet Weight5.2 Kg5.24 Kg5.2 Kg5.2 Kg5.2 Kg
Dimensions Width (mm)600 mm600 mm600 mm600 mm600 mm
Dimensions Height (mm)337.5 mm337.5 mm337.5 mm337.5 mm337.5 mm
Dimensions Depth (mm)46 mm29.5 mm29.5 mm29.5 mm29.5 mm
Cabinet Resolution640 x 360 Pixels480 x 270 Pixels480 x 270 Pixels384 x 216 Pixels384 x 216 Pixels
Max Power Consumption / m2494 W/m²667 W/m²667 W/m²741 W/m²741 W/m²
Avg Power Consumption / m2163 W/m²222 W/m²222 W/m²247 W/m²247 W/m²
Max Power Consumption / Panel100 W/panel135 W/panel135 W/panel150 W/panel150 W/panel
Avg Power Consumption / Panel33.3 W/panel45 W/panel45 W/panel50 W/panel50 W/panel
TransparencyN/AN/AN/AN/AN/A
CurvingSee WP WrapSee WP WrapSee WP WrapSee WP WrapSee WP Wrap
Operating Power Source100-240V AC, 50-60Hz100-240V AC, 50-60Hz100-240V AC, 50-60Hz100-240V AC, 50-60Hz100-240V AC, 50-60Hz
Operating Temperature-10°C ~ +45°C-10°C ~ +45°C-10°C ~ +45°C−10°C ~ +45°C−10°C ~ +45°C
Ingress ProtectionIP30IP30IP30IP30IP30
VerificationCE, ETL, FCC, RoHS, RCMCE, ETL, FCC, RoHS, RCMCE, ETL, FCC, RoHS, RCMCE, ETL, FCC, RoHS, RCMCE, ETL, FCC, RoHS, RCM
ApplicationInstallInstallInstall
ModelWP Pro Indoor P1.8WP Lite Indoor P1.8WP Pro Indoor P2.3WP Lite Indoor P2.3WP Pro Indoor P2.5
SeriesWPWPWPWPWP
VersionPro / LiteLiteProLitePro
Pixel Pitch (mm)1.87 mm1.87 mm2.34 mm2.34 mm2.5 mm
EnvironmentIndoorIndoorIndoorIndoorIndoor
LED Configuration3 IN 1 SMD3 IN 1 SMD3 IN 1 SMD3 IN 1 SMD3 IN 1 SMD
Max Brightness1200 nits800 nits1200 nits1000 nits1500 nits
Refresh Rate≤3,840 Hz≤3,840 Hz≤3,840 Hz≤3,840 Hz≤3,840 Hz
Viewing Angle160 / 160160 / 160160 / 160160 / 160160 / 160
Cabinet Weight5.2 Kg5.2 Kg5.2 Kg5.2 Kg5.2 Kg
Dimensions Width (mm)600 mm600 mm600 mm600 mm600 mm
Dimensions Height (mm)337.5 mm337.5 mm337.5 mm337.5 mm337.5 mm
Dimensions Depth (mm)29.5 mm29.5 mm29.5 mm29.5 mm29.5 mm
Cabinet Resolution320 x 180 Pixels320 x 180 Pixels256 x 144 Pixels256 x 144 Pixels240 x 135 Pixels
Max Power Consumption / m2741 W/m²741 W/m²518 W/m²518 W/m²741 W/m²
Avg Power Consumption / m2247 W/m²247 W/m²173 W/m²173 W/m²247 W/m²
Max Power Consumption / Panel150 W/panel150 W/panel105 W/panel105 W/panel150 W/panel
Avg Power Consumption / Panel50 W/panel50 W/panel35 W/panel35 W/panel50 W/panel
TransparencyN/AN/AN/AN/AN/A
CurvingSee WP WrapSee WP WrapSee WP WrapSee WP WrapSee WP Wrap
Operating Power Source100-240V AC, 50-60Hz100-240V AC, 50-60Hz100-240V AC, 50-60Hz100-240V AC, 50-60Hz100-240V AC, 50-60Hz
Operating Temperature-10°C ~ +45°C-10°C ~ +45°C-10°C ~ +45°C-10°C ~ +45°C-10°C ~ +45°C
Ingress ProtectionIP30IP30IP30IP30IP30
VerificationCE, ETL, FCC, RoHS, RCMCE, ETL, FCC, RoHS, RCMCE, ETL, FCC, RoHS, RCMCE, ETL, FCC, RoHS, RCMCE, ETL, FCC, RoHS, RCM
ApplicationInstallInstallInstallInstallInstall
ModelWP Lite Indoor P2.5WP Pro Indoor P3WP Lite Indoor P3WP Wrap Indoor P2.5
SeriesWPWPWPWP
Pixel Pitch (mm)2.5 mm3.12 mm3.12 mm2.5 mm
EnvironmentIndoorIndoorIndoorIndoor
LED Configuration3 IN 1 SMD3 IN 1 SMD3 IN 1 SMD3 IN 1 SMD
Max Brightness1200 nits1500 nits1200 nits1500 (Pro) 1200 (Lite) nits
Refresh Rate≤3,840 Hz≤3,840 Hz≤3,840 Hz≤3,840 Hz
Viewing Angle160 / 160160 / 160160 / 160160° / 160°
Cabinet Weight5.2 Kg5.2 Kg5.2 Kg6.2 Kg
Dimensions Width (mm)600 mm600 mm600 mm600 mm
Dimensions Height (mm)337.5 mm337.5 mm337.5 mm337.5 mm
Dimensions Depth (mm)29.5 mm29.5 mm29.5 mm57.6 mm
Cabinet Resolution240 x 135 Pixels192 x 108 Pixels192 x 108 Pixels240 x 135 Pixels
Max Power Consumption / m2741 W/m²592 W/m²592 W/m²741 W/m²
Avg Power Consumption / m2247 W/m²198 W/m²198 W/m²247 W/m²
Max Power Consumption / Panel150 W/panel120 W/panel120 W/panel150 W/panel
Avg Power Consumption / Panel50 W/panel40 W/panel40 W/panel50 W/panel
TransparencyN/AN/AN/AN/A
CurvingSee WP WrapSee WP WrapSee WP WrapCustomisable
Operating Power Source100-240V AC, 50-60Hz100-240V AC, 50-60Hz100-240V AC, 50-60Hz100-240V AC, 50-60Hz
Operating Temperature-10°C ~ +45°C-10°C ~ +45°C-10°C ~ +45°C-10°C ~ +45°C
Ingress ProtectionIP30IP30IP30IP30
VerificationCE, ETL, FCC, RoHS, RCMCE, ETL, FCC, RoHS, RCMCE, ETL, FCC, RoHS, RCMCE, ETL, FCC, RoHS
ApplicationInstallInstallInstallInstall
