DF2 Series
Interactive Media Floor
| Specifications | |
| Pixel Pitch (mm): | 2.6 /3.9 / 5.9 / 7.8 |
| Brightness (nits): | up to 3000 |
| Application: | Install / Rental |
| Environments: | Outdoor / Indoor |
| IP Rating: | IP65 |
Key Features
- Equipped with high contrast LEDs for great visual performance
- Featuring anti-reflective & anti-slip surface
- Engineered to carry 625kg per cabinet, 1,500kg per m²
- LED modules are magnetically attached for easy maintenance
- Designed for very fast alignment and levelling
- Motion sensors detect movement and respond to activity
INTERACTIVE MEDIA FLOOR
The new generation interactive media floor solution was designed specifically for creative applications, allowing designers to create exciting new digital spaces and experiences.
The redesigned lightweight hollow frame allows for easy handling and fast setup. DF Series panels feature an integrated grid of motion sensors, which detect movement and respond to any physical activity performed on the surface or in close distance.
Equipped with high contrast LEDs and featuring anti-reflective and anti-slip surface,
the DF Series modules are magnetically attached to the frames, allowing easy service and maintenance.
DF Panels feature an independent cabinet foot structure, which assists with very fast installation, alignment and leveling. The power and data connectors are integrated into the panels, which helps to reduce the installation time to a minimum.
DF Series panels are fully IP65 rated, allowing the panels to be installed in any space and configurations. An eye catching interactive media floor provides a perfect solution for unique gallery displays, media catwalks, performing arts studios, museums, event centres and other creative spaces.
DF2 SERIES FEATURES
Equipped with high contrast LEDs for superb visual performance
Sensors detect movement and respond to activity around the panel
Designed for very fast alignment and levelling
LED modules are magnetically attached for easy service and maintenance
Featuring anti-reflective and anti-slip surface
Engineered to carry a load of 625kg per cabinet, 1,500 per ㎡
Features
Lightweight & Thin
One cabinet weighs only 10.5 kilograms, thanks to its hollow framework.
Quick Install
Independent cabinet foot design allows for a fast horizontal positioning and quick assembly.
Two screen levelling schemes are optional, and the screen height can be quickly levelled.
Interactivity
Optional integrated motion sensors detect movement and respond to any physical activity happening on the surface.
High Protection
Equipped with high contrast LEDs and featuring anti-reflective and anti-slip surface, DF Series panels are fully IP65 rated, allowing the panels to be installed in any space and configurations.
Easy Maintenance
Removable magnetic modules allow for maintenance of individual cabinets without effecting the operation of the entire screen. The hollow framework enables a fast assembly.

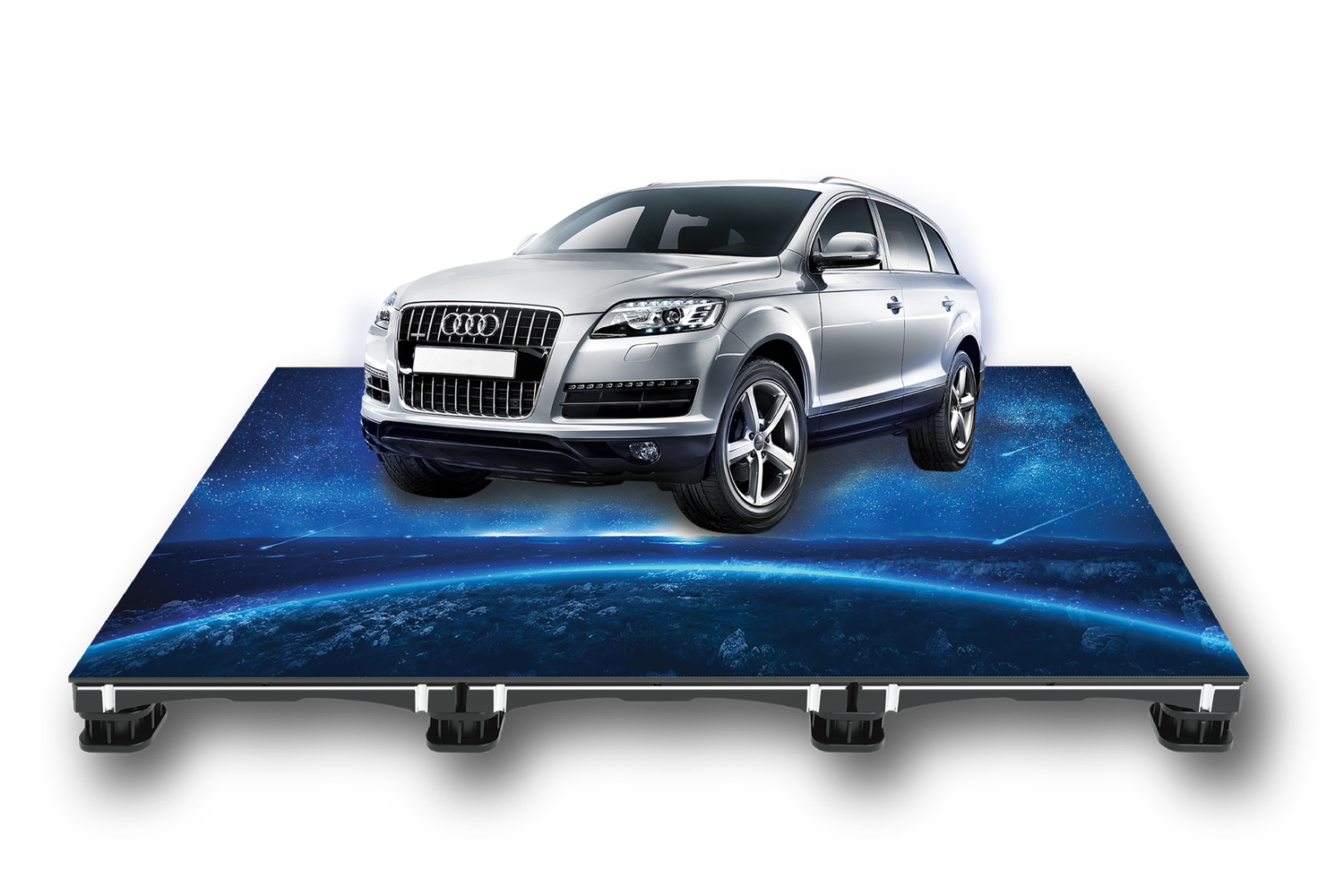

Great Durability
The durable panels are designed to carry loads of up to 1,500kg/m² with a safety factor of 3, so you can even drive the biggest SUV-class cars on the floor with absolute peace of mind!
Endless Creativity
An eye catching interactive media floor provides a perfect solution for unique gallery displays,
virtual & broadcast studios, media catwalks, performing arts studios, museums, event centres and other creative spaces.
DIMENSIONS
PRODUCT SPECIFICATIONS
| Model | DF2 VS Outdoor P2 | DF2 VS Outdoor P3 | DF2 Outdoor P3 | DF2 Outdoor P5 | DF2 Outdoor P7 |
| Series | DF2 | DF2 | DF2 | DF2 | DF2 |
| Pixel Pitch (mm) | 2.6 mm | 3.91 mm | 3.91 mm | 5.95 mm | 7.81 mm |
| Environment | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| LED Configuration | 3 IN 1 SMD 1921 | 3 IN 1 SMD 1921 | 3 IN 1 SMD 1921 | 3 IN 1 SMD 1921 | 3 IN 1 SMD 1921 |
| Max Brightness | 1500 nits | 1500 nits | 3000 nits | 3000 nits | 3000 nits |
| Refresh Rate | ≤7,680 Hz | ≤7,680 Hz | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz |
| Viewing Angle | 160° / 160° | 160° / 160° | 120° / 120° | 120° / 120° | 120° / 120° |
| Cabinet Weight | 11.5 Kg | 11.5 Kg | 11.5 Kg | 11.5 Kg | 11.5 Kg |
| Dimensions Width (mm) | 500 mm | 500 mm | 500 mm | 500 mm | 500 mm |
| Dimensions Height (mm) | 500 mm | 500 mm | 500 mm | 500 mm | 500 mm |
| Dimensions Depth (mm) | 83.3 mm | 83.3 mm | 83.3 mm | 84 mm | 84 mm |
| Cabinet Resolution | 192 x 192 Pixels | 128 x 128 Pixels | 128 x 128 Pixels | 84 x 84 Pixels | 64 x 64 Pixels |
| Max Power Consumption / m2 | 720 W/m² | 720 W/m² | 720 W/m² | 720 W/m² | 720 W/m² |
| Avg Power Consumption / m2 | 240 W/m² | 240 W/m² | 240 W/m² | 240 W/m² | 240 W/m² |
| Max Power Consumption / Panel | 180 W/panel | 180 W/panel | 180 W/panel | 180 W/panel | 180 W/panel |
| Avg Power Consumption / Panel | 60 W/panel | 60 W/panel | 60 W/panel | 60 W/panel | 60 W/panel |
| Transparency | N/A | N/A | N/A | N/A | N/A |
| Curving | N/A | N/A | N/A | N/A | N/A |
| Operating Power Source | 100-240V AC 50-60Hz | 100-240V AC 50-60Hz | 100-240V AC 50-60Hz | 100-240V AC 50-60Hz | 100-240V AC 50-60Hz |
| Operating Temperature | −20°C ~ +45°C | −20°C ~ +45°C | −20°C ~ +45°C | −20°C ~ +45°C | −20°C ~ +45°C |
| Ingress Protection | IP65 | IP65 | IP65 | IP65 | IP65 |
| Verification | CE, FCC, ETL, ROHS, REACH | CE, FCC, ETL, ROHS, REACH | CE, FCC, ETL, ROHS, REACH | CE, FCC, ETL, ROHS, REACH | CE, FCC, ETL, ROHS, REACH |
| Application | Rental / Install | Rental / Install | Rental / Install | Rental / Install | Rental / Install |
