Vuestrip
Linear LED Strip
| Specifications | |
| Pixel Pitch (mm): | 10.41 x 20.81 |
| Brightness (nits): | 4,000 |
| Application: | Install / Rental |
| Environments: | Indoor / Outdoor |
| IP Rating: | IP65 |
Key Features
- Linear LED rental solution
- Range of mounting & installation option
- Lightweight construction
- Supports Novastar & Brompton control systems
- IP65 protection
Linear LED Strip
VueStrip provides new creative possibilities and allows designers to think outside of the square when it comes to LED digital displays.
The lightweight linear housing and modular design makes these high-brightness LED strips perfect for any creative application. With advanced IP65 protection, VueStrips can be used for any outdoor events and spaces.
VueStrip offers a wide range of accessories, including different types of brackets for various installation methods. A range of diffusers is also available for special effects.
VUESTRIP FEATURES
Advanced IP65 protection
Lightweight construction
Quick and easy installation
Features

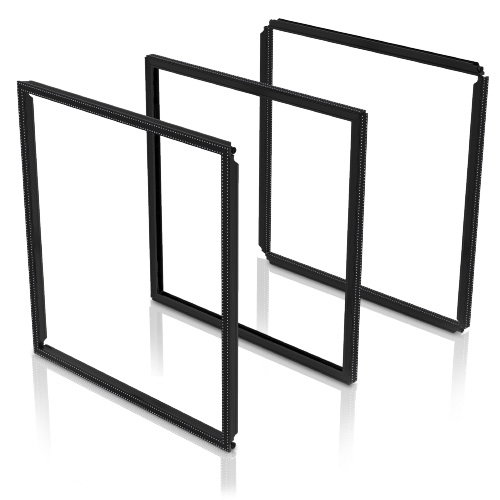

Creative Displays
Various shapes and creative displays can be achieved using VueStrip LED linear bars.

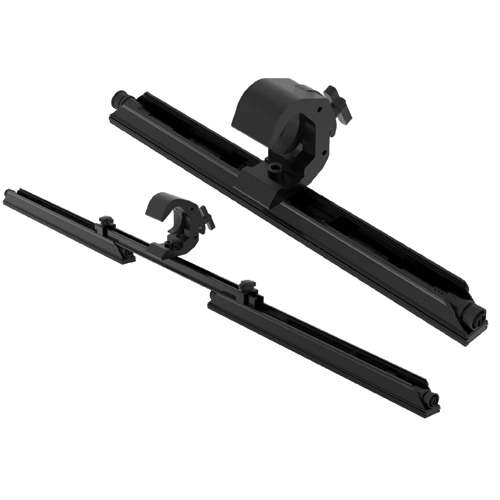

Installation Options
A wide range of accessories are available allowing various installation methods.

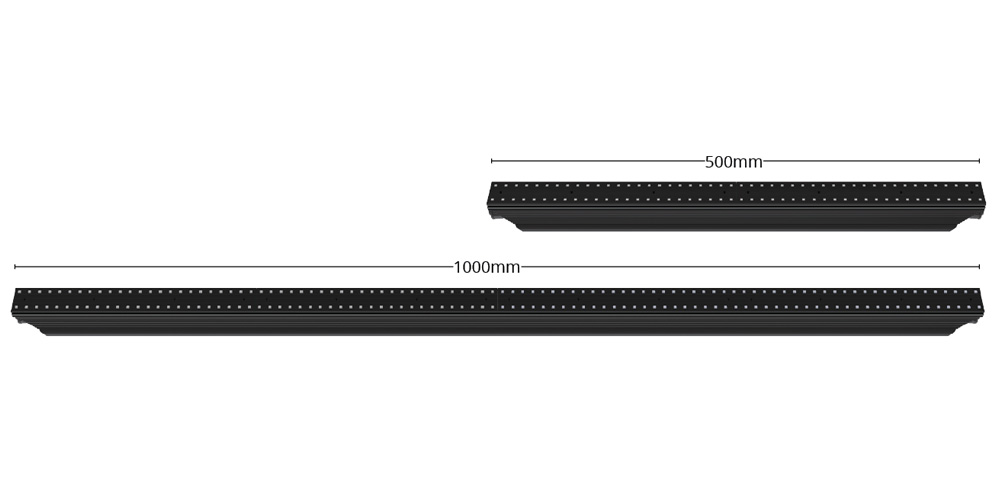

Perfect Size
VueStrip is available in 500mm or 1000mm lengths.

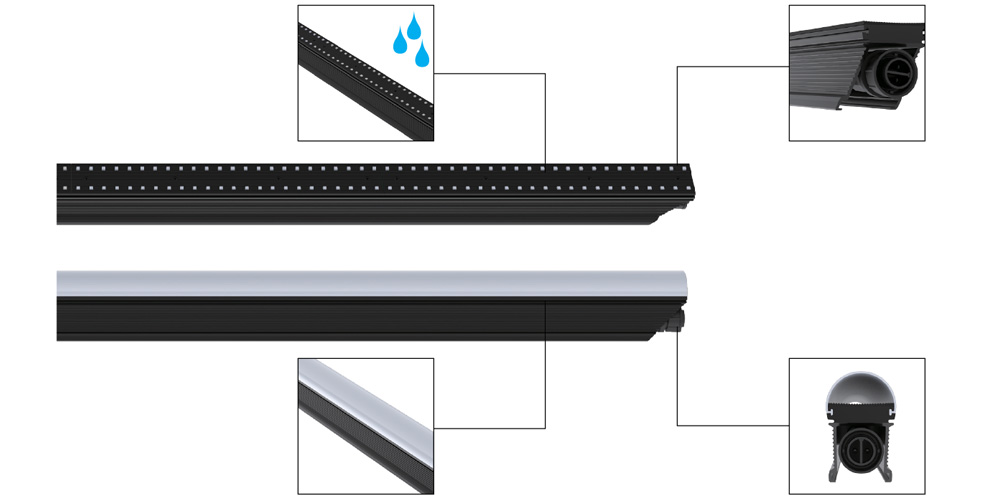

Weatherproof
Advanced IP65 protection makes VueStrip fixtures ideal for outdoor applications.

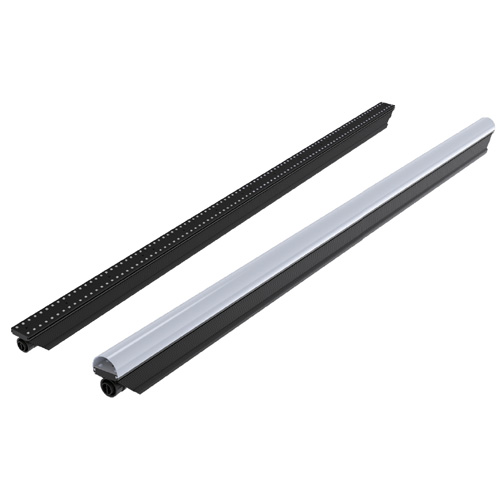

Optional Lampshades
A range of diffusers are available for special effects.

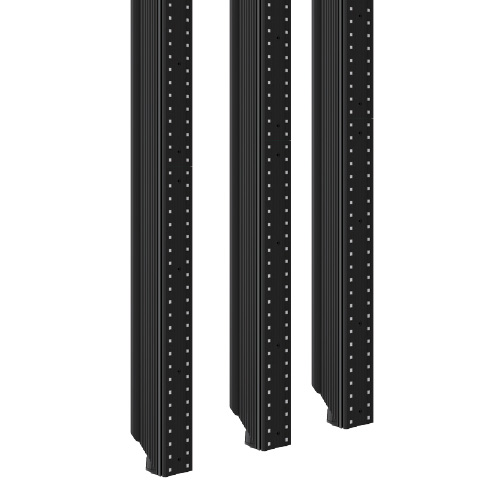

Control Solutions
VueStrip supports both Brompton and Novastar control systems.

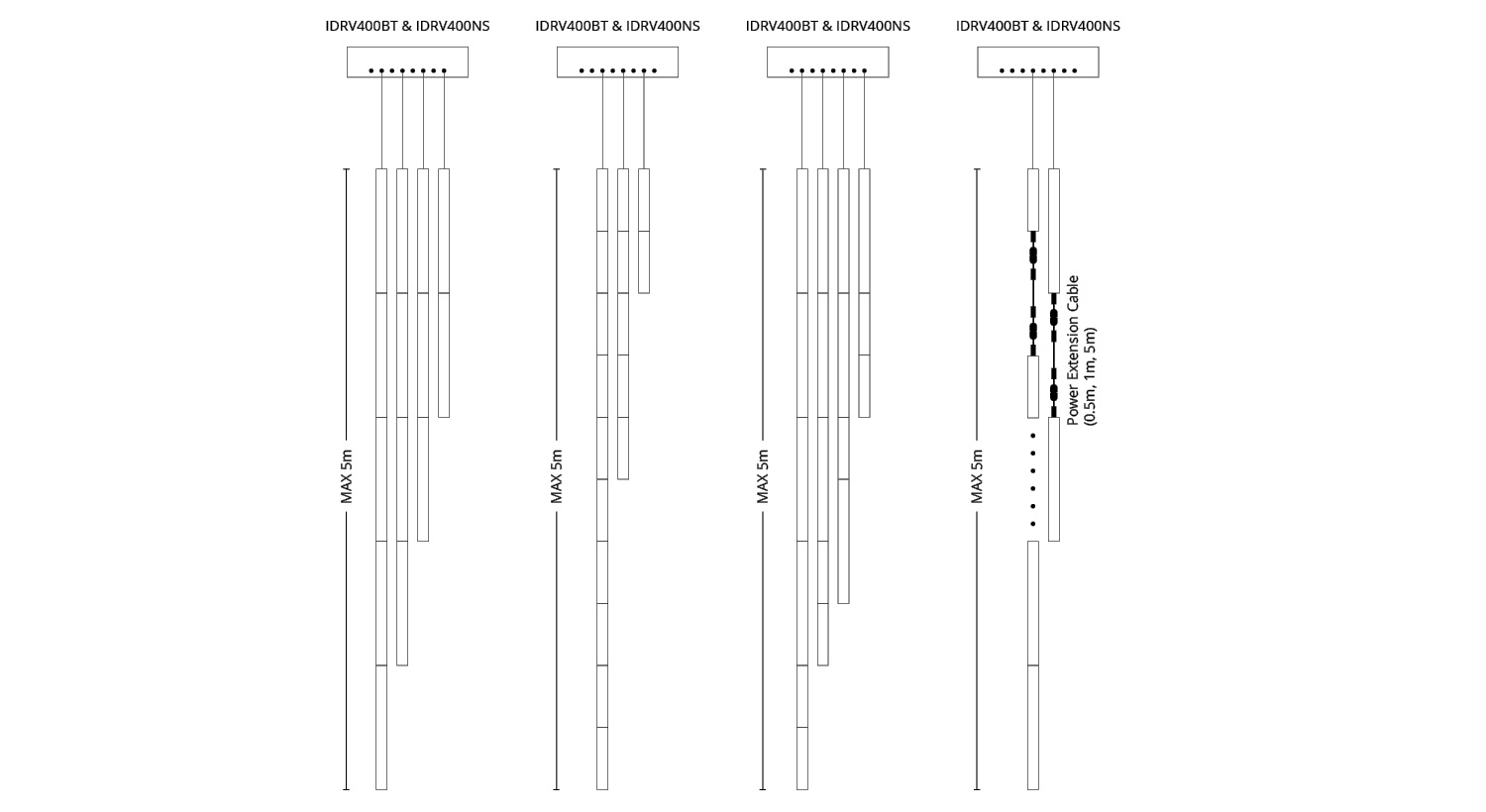

Power & Data Diagram

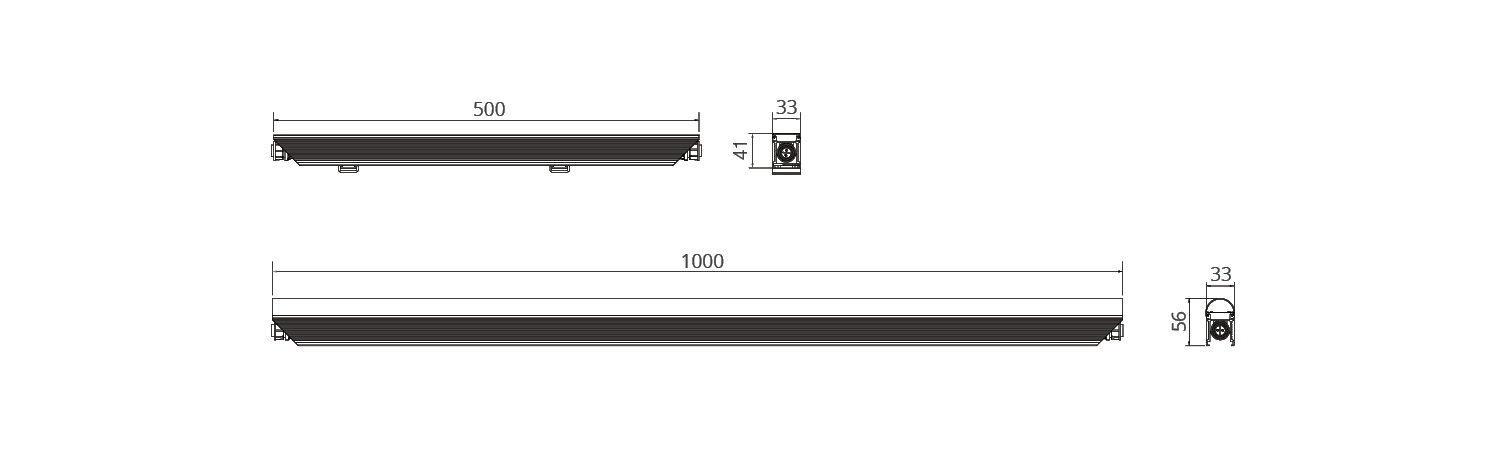

Dimensions
PRODUCT SPECIFICATIONS
| Model | VUESTRIP Outdoor P10-500 | VUESTRIP Outdoor P10-1000 |
| Series | VS | VS |
| Pixel Pitch (mm) | 10.41 x 20.82 mm | 10.41 x 20.82 mm |
| Environment | Outdoor | Outdoor |
| LED Configuration | 3 IN 1 SMD | 3 IN 1 SMD |
| Max Brightness | 4000 nits | 4000 nits |
| Refresh Rate | ≤1,000 Hz | ≤1,000 Hz |
| Viewing Angle | 160 / 160 | 160 / 160 |
| Cabinet Weight | 0.6 Kg | 1 Kg |
| Dimensions Width (mm) | 500 mm | 1000 mm |
| Dimensions Height (mm) | 33 mm | 33 mm |
| Dimensions Depth (mm) | 41 mm | 56 mm |
| Cabinet Resolution | 48 x 2 Pixels | 96 x 2 Pixels |
| Max Power Consumption / m2 | 8 W/m² | 15 W/m² |
| Avg Power Consumption / m2 | 3 W/m² | 5 W/m² |
| Max Power Consumption / Panel | ||
| Avg Power Consumption / Panel | ||
| Transparency | N/A | N/A |
| Curving | N/A | N/A |
| Operating Power Source | 100-240V AC 50-60Hz | 100-240V AC 50-60Hz |
| Operating Temperature | -10°C ~ +45°C | -10°C ~ +45°C |
| Ingress Protection | IP65 | IP65 |
| Verification | CE, RoHS, EMC, TUV | CE, RoHS, EMC, TUV |
| Application | Rental / Install | Rental / Install |
