AR Series

Delivering Outstanding Performance

Specifications
Pixel Pitch (mm): 2.9 / 3.9 / 4.6 / 5.9 / 6.9 / 7.8 / 10.4
Brightness (nits): up to 5000
Application: Rental & Touring
Environments: Indoor / Outdoor
IP Rating: IP30 & IP65 options

Key Features

  • ‘Fast lock system’ and positioning pin for quick and easy assembly
  • Optional dual power and signal redundancy
  • Separate and exchangeable power and control unit
  • Ergonomically designed handle for convenient manipulation
  • IP65 front & rear for outdoor use (optional)
  • Easy front service access options

Delivering Outstanding Performance

VuePix Infiled AR series offer lightweight high performance panels for indoor and outdoor applications.

The new advanced AR series panels feature magnets on the top and bottom of the frame to pre-lock the cabinets, and positioning pins for quick and easy alignment. The panels are equipped with ergonomic handles for easy manoeuvring. Climbing handles can be added for easy access & maintenance during large scale applications.

The separate power and data unit can be exchanged easily with no tools required. The AR series cabinets come in both front and rear servicing options.

Curved displays can be achieved by using special angle couplers. The AR series offers a wide range of accessories, designed to minimise the set-up time during rental applications.

AR SERIES FEATURES

Easy front service access options

‘Fast lock system’ and positioning pin for quick and easy assembly

Separate and exchangeable power and control unit

Indoor & outdoor models available

Ergonomically designed handle for convenient manipulation

Optional dual power and signal redundancy

Setup and Alignment

Handles

Ergonomic handles for convenient manoeuvring.

Magnets

Magnets on the top and bottom of the frame to pre-lock the cabinets

Locking

Fast lock system for easy assembly.

Positioning Pins

Positioning pins for quick and easy alignment.

Straight or Curved

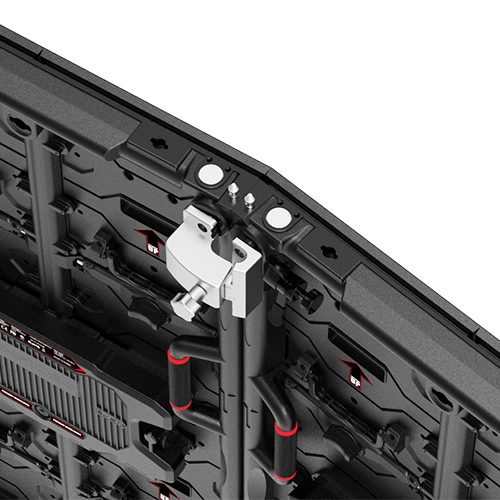

Angle Coupler

Using the Angle Coupler for concave & convex angles can reach to +10° with 9 steps.
Angle Coupler is optional

Curved System

Angle coupler required

Configurations

Hanging System

Truss bars are available in different sizes and modifications for hanging applications.

Stacking System

Pedestals are available for single, double and triple panel configurations.

Usability

Module Access

LED modules can be easily replaced with no tools required.
Front and rear service options are available.

Climbing Handles

Climbing handles can be added for easy access & maintenance during large scale applications.

Power & Data Unit

Exchangeable power and data unit can be replaced without tools.

Compatability

AR + ER

The advanced AR panels seamlessly interlock with VuePix Infiled ER panels, making the AR series the perfect addition for those who already offer VuePix Infiled ER solutions.

Touring System

Multi-Panel Assembly

Designed to minimise the set-up time and boost the efficiency of your team!

DIMENSIONS

PRODUCT SPECIFICATIONS

Model AR Indoor P2 AR Indoor P3 AR Indoor P5 AR Indoor P6
Series AR AR AR AR
Pixel Pitch (mm) 2.97 mm 3.91 mm 5.95 mm 6.94 mm
Environment Indoor Indoor Indoor Indoor
LED Configuration 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD
Max Brightness 1200 nits 1200 nits 1000 nits 1000 nits
Refresh Rate ≤2,880 Hz ≤3,840 Hz ≤3,840 Hz ≤3,840 Hz
Viewing Angle 160° / 160° 160° / 160° 160° / 160° 160° / 160°
Cabinet Weight 12.8 Kg 12.5 Kg 12.5 Kg 12.5 Kg
Dimensions Width (mm) 500 mm 500 mm 500 mm 500 mm
Dimensions Height (mm) 1000 mm 1000 mm 1000 mm 1000 mm
Dimensions Depth (mm) 66 mm 66 mm 66 mm 66 mm
Cabinet Resolution 168 x 336 Pixels 128 x 258 Pixels 84 x 168 Pixels 72 x 144 Pixels
Max Power Consumption / m2 540 W/m² 540 W/m² 540 W/m² 540 W/m²
Avg Power Consumption / m2 180 W/m² 180 W/m² 180 W/m² 180 W/m²
Max Power Consumption / Panel 270 W/panel 270 W/panel 270 W/panel 270 W/panel
Avg Power Consumption / Panel 90 W/panel 90 W/panel 90 W/panel 90 W/panel
Transparency N/A N/A N/A N/A
Curving Optional Optional Optional Optional
Operating Power Source 100-240V AC 50-60Hz 100-240V AC, 50-60Hz 100-240V AC 50-60Hz 100-240V AC 50-60Hz
Operating Temperature -20°C ~ +45°C -20°C ~ +45°C -20°C ~ +45°C -20°C ~ +45°C
Ingress Protection IP30 IP30 IP30 IP30
Verification CE, ETL, FCC, RoHS, RCM CE, ETL, FCC, RoHS, RCM CE, ETL, FCC, RoHS, RCM CE, ETL, FCC, RoHS, RCM
Application Rental Rental Rental Rental
