SP Series
Sport Fields Perimeter Solution
| Specifications | |
| Pixel Pitch (mm): | 6 / 10 |
| Brightness (nits): | 6000 |
| Application: | Install / Rental |
| Environments: | Outdoor |
| IP Rating: | IP65 |
Key Features
- Outstanding visual performance even in direct sun light
- Specifically designed to comply with UEFA requirements
- Fail safe components to ensure flawless operation
- Automatic colour calibration system
- Independent RCD protection
- Advanced IP65 protection
- Specific designs for emergency & service gates available
Sport Fields Perimeter Solution

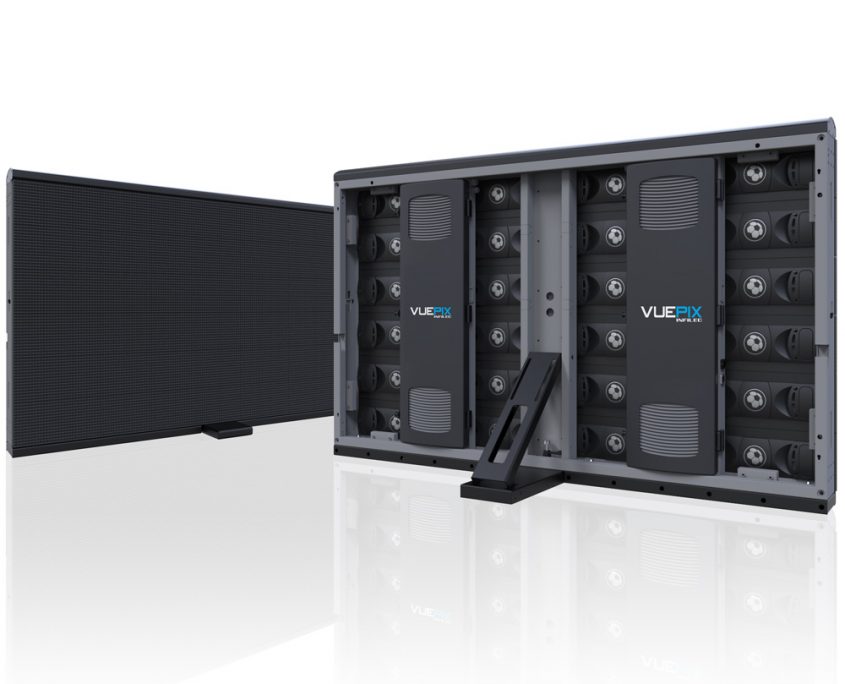

The VuePix SP Series is a dedicated high performance LED Sports Perimeter solution for advertising and digital signage in sporting fields.
The SP panels were specifically designed to comply with the latest UEFA requirements as well as the highest radiation immunity and emission regulations (EN 55022-A class B standards).
The SP system offers perfect operational stability even with external sources of electric and electromagnetic interference, e.g. TV operation signals. The panels are also equipped with fail safe components to ensure flawless operation.
With a high refresh rate of more than 3840Hz, you get perfectly stable broadcasting footage even in slow motion. The VuePix SP series feature an automatic colour calibration system, which will automatically adjust your content to the highest visual standard.
All the electronic components of the system are easy to service and LED modules can be replaced from front or rear access in no time.
The SP Series system has an independent RCD Protection, making it absolutely safe to operate in the sporting fields. It is designed with rubber louvers and paddings to protect players from an injury.
The SP Series also offer panels specifically designed to be placed in the sporting fields to act as emergency and service gates, to provide you with the whole an end-end integrated LED digital system for your stadium.
SP SERIES FEATURES
Outstanding visual performance even in direct sun light
Specifically designed to comply with UEFA requirements
Perfect operation stability
Fail safe components to ensure flawless operation
Automatic colour calibration system
Independent RCD protection
Advanced IP65 protection
Specific designs for emergency and service gates available
DISPLAY RATIOS AND DIMENSIONS
PRODUCT SPECIFICATIONS
| Model | SP Outdoor P6 | SP Outdoor P10 |
| Series | SP | SP |
| Pixel Pitch (mm) | 6.25 mm | 10 mm |
| Environment | Outdoor | Outdoor |
| LED Configuration | 3 IN 1 SMD | 3 IN 1 SMD |
| Max Brightness | 5000 nits | 6000 nits |
| Refresh Rate | ≤3,840 Hz | ≤3,840 Hz |
| Viewing Angle | 160 / 110 | 160 / 110 |
| Cabinet Weight | 65 Kg | 65 Kg |
| Dimensions Width (mm) | 1600 mm | 1600 mm |
| Dimensions Height (mm) | 956 mm | 956 mm |
| Dimensions Depth (mm) | 124 mm | 124 mm |
| Cabinet Resolution | 160 x 90 Pixels | 160 x 90 Pixels |
| Max Power Consumption / m2 | 730 W/m² | 730 W/m² |
| Avg Power Consumption / m2 | 243 W/m² | 243 W/m² |
| Max Power Consumption / Panel | 1050 W/panel | 1050 W/panel |
| Avg Power Consumption / Panel | 350 W/panel | 350 W/panel |
| Transparency | N/A | N/A |
| Curving | N/A | N/A |
| Operating Power Source | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz |
| Operating Temperature | -20°C ~ +50°C | -10°C ~ +45°C |
| Ingress Protection | IP65 | IP65 |
| Verification | CE, FCC, ETL, RoHS | CE, FCC, ETL, RoHS |
| Application | Install / Rental | Install / Rental |
