DEEP BLACK

Optimised for Virtual & XR Environments

Specifications
Pixel Pitch (mm): 1.5 / 1.9 / 2.3 / 2.6 / 2.8 / 3.4
Brightness (nits): up to 2000
Application: Install / Rental
Environments: Indoor
IP Rating: IP30

Key Features

  • Deep black design for ultimate image quality
  • Protective System
  • Cable free connection
  • Easy maintenance system
  • Curving system available

Optimised for Virtual & XR Environments

New benchmark for superior black LED screens.

Designed specifically for fine pixel pitch rental applications, the DB-Series utilises ultra-black masking material and exclusive black LED’s to produce a new level of contrast for LED screens. With high grey scale levels, a fast refresh rate, and the highest quality components, the DB-Series provides the ultimate LED screen picture quality.

The DB-Series was designed with an emphasis on ergonomics and usability. The panels are of a modular design built around a robust die-cast aluminium frame, with inbuilt feet and edge protectors to prevent physical damage during assembly.

The DB-Series comes equipped with a fast locking system for rapid construction, a curving system allowing both convex and concave configurations, and cable free power and data connection (optional) for the ultimate clutter free installations.

DB SERIES FEATURES

Deep black design for ultimate image quality

Cable free connection

Curving system available

Protective System

Easy maintenance system

Fast locking system for rapid construction

Designed for ultimate
image quality

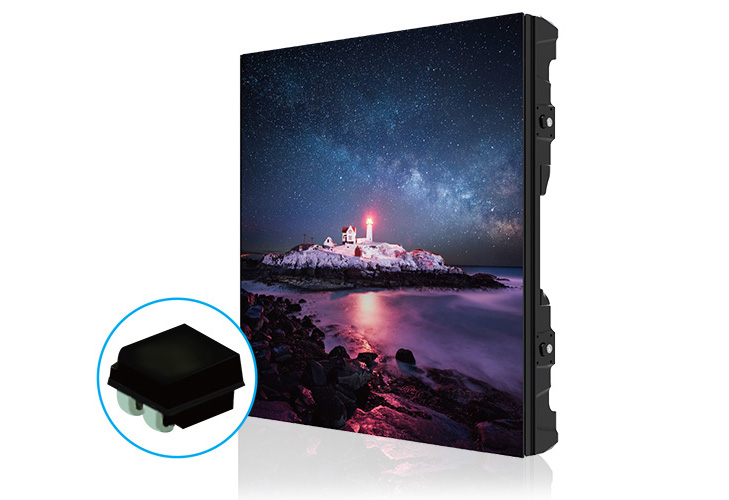

Exclusive black LEDS
VuePix Infiled DB Series utilizes the smallest exclusive black LEDs with high luminous intensity
& wide colour gamut. Edge protectors provide protection of LEDs against physical damage
during transport & handling. Retractable feet at the bottom of the panel keep the LEDs protected from scratching any surface underneath the panel.

Ultra black frame & mask
Designed specifically for fine pixel pitch applications, the DB series uses a full black frame and
ultra-black masking materials. The exclusive materials and components allow for a new level of contrast, ultimate image quality & picture depth.

Advanced Protective System

Edge protectors
provide protection of LEDs against physical damage during transport & handling.

Retractable feet
at the bottom of the panel keep the LEDs protected from scratching any surface
underneath the panel.

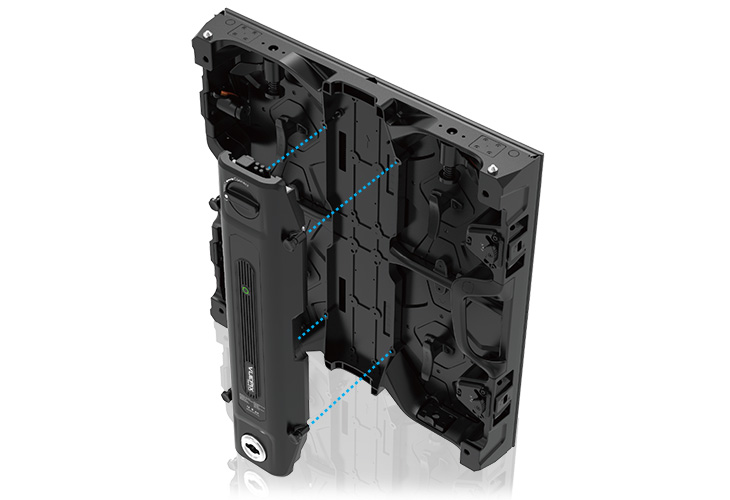

Easy Maintenance System

The DB series panels feature separate and exchangeable power & control modules for easy
and quick maintenance. Front service access is possible for applications where access from the rear is restricted.

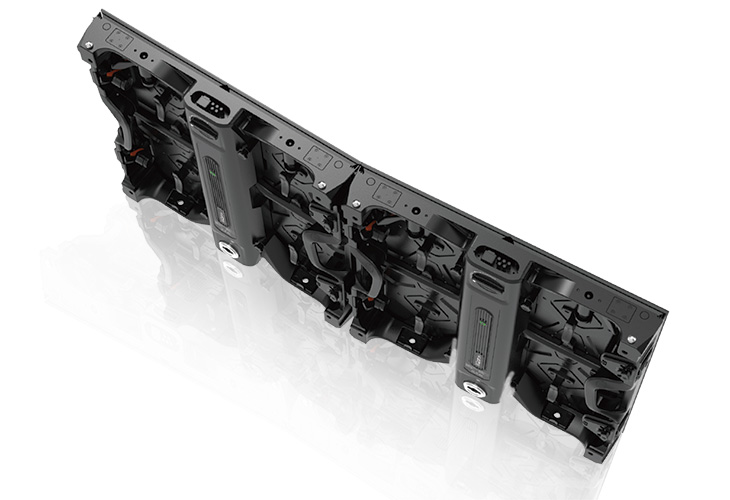

Inbuilt Curving System

Curved displays can be easily achieved thanks to in-built curving system, allowing for both concave and convex shapes with angles of +-5˚ in 3 steps.

Comprehensive Rigging Systems

A full range of accessories and comprehensive rigging system options allow for maximum flexibility.

Options & Customisation

Cabled or cable free connection

All models of the DB series can come in the cable free or cabled version. The Cable free version uses an integrated connector to provide power and data to the cabinets through the spine of the screen from the header or footer bar. The cabled version uses traditional link cables for power and data in between the cabinets.

Pro or Lite version

The DB 1.9, 2.4 & 2.6 panels also offer a LITE or PRO Version. The PRO version uses a superior True Black LEDs to allow for even greater blacks for use in broadcast applications or where a black wall is critical. The PRO version also features a higher grade processing IC and Novastar A8s cards to achieve greater greyscale performance on the screen.

Inbuilt Curving System

GOB Coating

For greater protection of the LED modules in applications where there could be human contact with the screen, the DB series offer a ‘Glue on board’ (GOB) coating on the modules to allow for protection of the LED’s. This protection is available on the DB 1.9 & 2.6 models only.

Virtual Studio Series

Upgrade to our Virtual Studio series with Brompton processing technology, offering the ultimate image quality captured on the camera.

DB VIRTUAL SERIES

Designed specifically for film, broadcast and virtual studio applications

VuePix Infiled partnered up with Brompton to create a special VIRTUAL STUDIO series, designed to deliver an ultimate image quality for camera. Catering specifically for all fine pixel pitch applications in film, broadcast & virtual studio environments, the Virtual Studio series utilises the latest processing system from Brompton. Ultra-low SCAN rate ensures a superb performance for professional camera systems.
High quality Macroblock driver ICs deliver exceptional refresh rate. Utilising all the exclusive materials & reliable technology of VuePix Infiled DB panels, the DB Virtual Studio series provides you with a perfect solution for the most demanding environments, where you want the ultimate image quality captured on the camera.

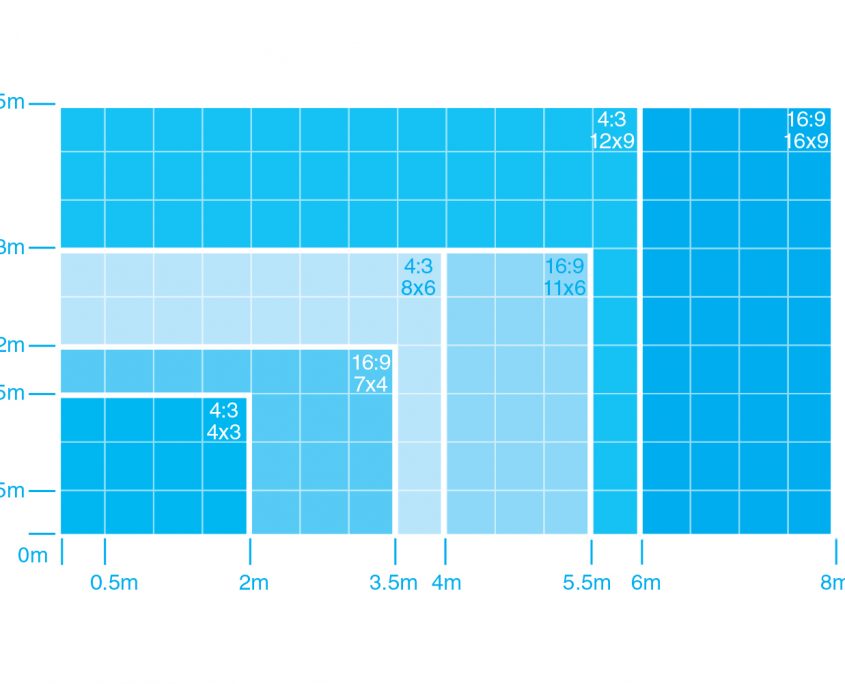

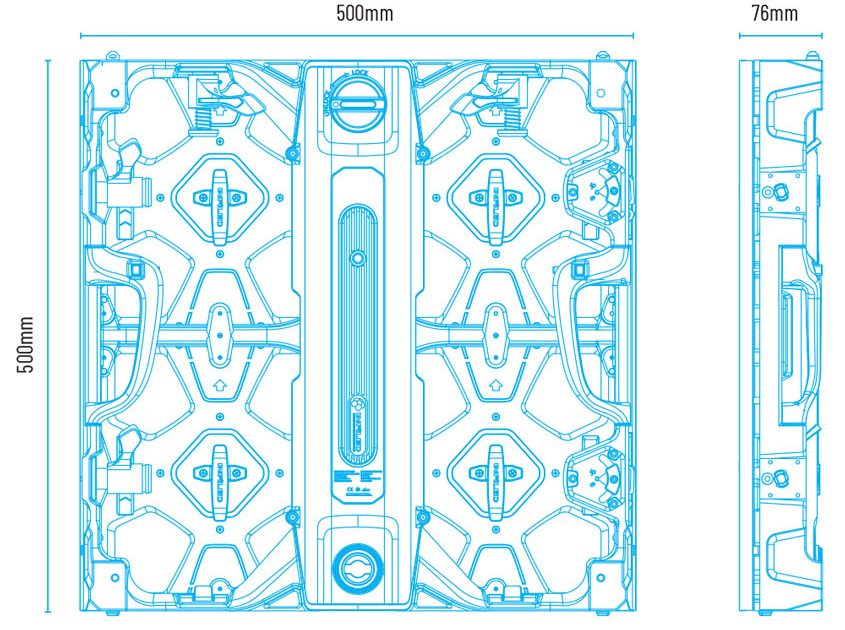

DISPLAY RATIOS AND DIMENSIONS

PRODUCT SPECIFICATIONS

Model DB Pro Indoor P1.5 DB Pro Indoor P1.9 DB Lite Indoor P1.9 DB VS Indoor P1.9 DB Pro Indoor P2.3
Series DB DB DB DB DB
Version Pro Pro Lite Virtual Studio Pro
Scan Rate 1/32 1/32 1/32 1/8 1/27
Colour Gamut REC709 REC709 REC709 DCI-P3 REC709
Pixel Pitch (mm) 1.56 mm 1.95 mm 1.95 mm 1.95 mm 2.31 mm
Environment Indoor Indoor Indoor Indoor Indoor
LED Configuration MiniLED 4 in 1 SMD1010 SMD1010 SMD1212 SMD1515 / SMD1415
Max Brightness 600 nits 800 (Pro) nits 600 (Lite) nits 1200 nits 1200 (Pro) nits
Refresh Rate ≤3,840 (Config) Hz ≤3,840 (Config) Hz ≤3,840 (Config) Hz ≤7,680 (Config) Hz ≤3,840 (Config) Hz
Viewing Angle 160° / 160° 160° / 160° 160° / 160° 160° / 160° 160° / 160°
Cabinet Weight 8.8 Kg 8.8 Kg 8.8 Kg 8.8 Kg 8.8 Kg
Dimensions Width (mm) 500 mm 500 mm 500 mm 500 mm 500 mm
Dimensions Height (mm) 500 mm 500 mm 500 mm 500 mm 500 mm
Dimensions Depth (mm) 75.5 mm 75.5 mm 75.5 mm 75.5 mm 75.5 mm
Cabinet Resolution 320 x 320 Pixels 256 x 256 Pixels 256 x 256 Pixels 256 x 256 Pixels 216 x 216 Pixels
Max Power Consumption / m2 600 W/m² 600 W/m² 600 W/m² 720 W/m² 600 W/m²
Avg Power Consumption / m2 200 W/m² 200 W/m² 200 W/m² 240 W/m² 200 W/m²
Max Power Consumption / Panel 150 W/panel 150 W/panel 150 W/panel 180 W/panel 150 W/panel
Avg Power Consumption / Panel 50 W/panel 50 W/panel 50 W/panel 60 W/panel 50 W/panel
Transparency N/A N/A N/A N/A N/A
Curving +-5˚ in 3 steps +-5˚ in 3 steps +-5˚ in 3 steps +-5˚ in 3 steps +-5˚ in 3 steps
Operating Power Source 100-240V AC 50-60Hz 100-240V AC 50-60Hz 100-240V AC 50-60Hz 100-240V AC 50-60Hz 100-240V AC 50-60Hz
Operating Temperature -10°C ~ +45°C -10°C ~ +45°C -10°C ~ +45°C -10°C ~ +45°C -10°C ~ +45°C
Ingress Protection IP30 IP30 IP30 IP30 IP30
Verification CE, FCC, ETL, RoHS CE, FCC, ETL, RoHS CE, FCC, ETL, RoHS CE, FCC, ETL, RoHS CE, FCC, ETL, RoHS
Application Rental / Install Rental / Install Rental / Install Rental / Install Rental / Install
Model
Series
Version
Scan Rate
Colour Gamut
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Version
Scan Rate
Colour Gamut
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model DB Lite Indoor P2.3 DB Pro Indoor P2.6 DB VS Indoor P2.3 DB Lite Indoor P2.6 DB VS Indoor P2.6
Series DB DB DB DB DB
Version Lite Pro Virtual Studio Lite Virtual Studio
Scan Rate 1/27 1/24 1/6 1/24 1/8
Colour Gamut REC709 REC709 DCI-P3 REC709 DCI-P3
Pixel Pitch (mm) 2.31 mm 2.6 mm 2.31 mm 2.6 mm 2.6 mm
Environment Indoor Indoor Indoor Indoor Indoor
LED Configuration SMD1515 / SMD1415 SMD1515 / SMD1415 SMD1515 SMD1515 / SMD1415 SMD1515
Max Brightness 1000 (Lite) nits 1200 (Pro) nits 1,800 nits nits 1000 (Lite) nits 2000 nits
Refresh Rate ≤3,840 (Config) Hz ≤3,840 (Config) Hz ≤7,680 Hz (Config.) Hz ≤3,840 (Config) Hz ≤7,680 (Config) Hz
Viewing Angle 160° / 160° 160° / 160° 160° / 160° 160° / 160° 160° / 160°
Cabinet Weight 8.8 Kg 8.8 Kg 8.8 Kg 8.8 Kg 8.8 Kg
Dimensions Width (mm) 500 mm 500 mm 500 mm 500 mm 500 mm
Dimensions Height (mm) 500 mm 500 mm 500 mm 500 mm 500 mm
Dimensions Depth (mm) 75.5 mm 75.5 mm 75.5 mm 75.5 mm 75.5 mm
Cabinet Resolution 216 x 216 Pixels 192 x 192 Pixels 216 x 216 Pixels 192 x 192 Pixels 192 x 192 Pixels
Max Power Consumption / m2 600 W/m² 600 W/m² 720 W/m² 600 W/m² 720 W/m²
Avg Power Consumption / m2 200 W/m² 200 W/m² 240 W/m² 200 W/m² 240 W/m²
Max Power Consumption / Panel 150 W/panel 150 W/panel 180 W/panel 150 W/panel 180 W/panel
Avg Power Consumption / Panel 50 W/panel 50 W/panel 60 W/panel 50 W/panel 60 W/panel
Transparency N/A N/A N/A N/A N/A
Curving +-5˚ in 3 steps +-5˚ in 3 steps +-5˚ in 3 steps +-5˚ in 3 steps +-5˚ in 3 steps
Operating Power Source 100-240V AC 50-60Hz 100-240V AC 50-60Hz 100-240V AC 50-60Hz 100-240V AC 50-60Hz 100-240V AC 50-60Hz
Operating Temperature -10°C ~ +45°C -10°C ~ +45°C -10°C ~ +45°C -10°C ~ +45°C -10°C ~ +45°C
Ingress Protection IP30 IP30 IP30 IP30 IP30
Verification CE, FCC, ETL, RoHS CE, FCC, ETL, RoHS CE, FCC, ETL, RoHS CE, FCC, ETL, RoHS CE, FCC, ETL, RoHS
Application Rental / Install Rental / Install Rental / Install Rental / Install Rental / Install
Model
Series
Version
Scan Rate
Colour Gamut
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model DB VS Indoor P2.8 DB Lite Indoor P2.8 DB Pro Indoor P3 DB Lite Indoor P3
Series DB DB DB DB
Version Virtual Studio Lite Pro Lite
Scan Rate 1/8 1/22 1/9 1/9
Colour Gamut DCI-P3 REC709 REC709 REC709
Pixel Pitch (mm) 2.84 mm 2.84 mm 3.47 mm 3.47 mm
Environment Indoor Indoor Indoor Indoor
LED Configuration SMD1515 SMD2020 SMD2020 SMD2020
Max Brightness 2000 nits 1200 nits 1800 (Pro) nits 1200 (Light) nits
Refresh Rate ≤7,860 (Config) Hz ≤3,840 (Config) Hz ≤3,840 (Config) Hz ≤3,840 (Config) Hz
Viewing Angle 160° / 160° 160° / 160° 160° / 160° 160° / 160°
Cabinet Weight 8.8 Kg 8.8 Kg 8.8 Kg 8.8 Kg
Dimensions Width (mm) 500 mm 500 mm 500 mm 500 mm
Dimensions Height (mm) 500 mm 500 mm 500 mm 500 mm
Dimensions Depth (mm) 75.5 mm 75.5 mm 75.5 mm 75.5 mm
Cabinet Resolution 176 x 176 Pixels 176 x 176 Pixels 144 x 144 Pixels 144 x 144 Pixels
Max Power Consumption / m2 720 W/m² 600 W/m² 600 W/m² 600 W/m²
Avg Power Consumption / m2 240 W/m² 200 W/m² 200 W/m² 200 W/m²
Max Power Consumption / Panel 180 W/panel 150 W/panel 150 W/panel 150 W/panel
Avg Power Consumption / Panel 60 W/panel 50 W/panel 50 W/panel 50 W/panel
Transparency N/A N/A N/A N/A
Curving +-5˚ in 3 steps +-5˚ in 3 steps +-5˚ in 3 steps +-5˚ in 3 steps
Operating Power Source 100-240V AC 50-60Hz 100-240V AC 50-60Hz 100-240V AC 50-60Hz 100-240V AC 50-60Hz
Operating Temperature -10°C ~ +45°C -10°C ~ +45°C -10°C ~ +45°C -10°C ~ +45°C
Ingress Protection IP30 IP30 IP30 IP30
Verification CE, FCC, ETL, RoHS CE, FCC, ETL, RoHS CE, FCC, ETL, RoHS CE, FCC, ETL, RoHS
Application Rental / Install Rental / Install Rental / Install Rental / Install
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
Model
Series
Pixel Pitch (mm)
Environment
LED Configuration
Max Brightness
Refresh Rate
Viewing Angle
Cabinet Weight
Dimensions Width (mm)
Dimensions Height (mm)
Dimensions Depth (mm)
Cabinet Resolution
Max Power Consumption / m2
Avg Power Consumption / m2
Max Power Consumption / Panel
Avg Power Consumption / Panel
Transparency
Curving
Operating Power Source
Operating Temperature
Ingress Protection
Verification
Application
