MV Mesh Series
Outstanding Transparency for Out of Home Displays
| Specifications | |
| Pixel Pitch (mm): | 15.6 (H) x 31.25 (V), 25 (H) x 50 (V), 16.6 |
| Brightness (nits): | Up to 7,000 (light) – 10,000 (pro) |
| Application: | Install |
| Environments: | Outdoor |
| IP Rating: | IP65 |
Key Features
- Ultra-lightweight, yet durable panels
- High transparency of up to 80%
- Excellent brightness
- High contrast ration & refresh rate
- Advanced IP65 protection
- Front & rear service options
Outstanding Transparency for Out of Home Displays
Ultra-lightweight yet durable, high-performance
LED panels with excellent transparency.
MV Mesh Series combines all the advantages of the high-performance MV series panels with an excellent transparency of up to 80%, allowing a great amount of natural light to cut through.
Thanks to the unique Dual-LED concept, the MV Mesh series panels deliver excellent brightness
of up to 10,000 nits, which is really remarkable in the field of mesh LED screens.
With a high contrast ratio and high refresh rate, the MV Mesh series delivers superb visuals in any light condition.
The cabinet weight ranges between 10-12kg (full size 1m x 1m panel), which makes the MV Mesh series much lighter than traditional outdoor cabinets, allowing for easier installation and lighter supporting structures in place.
The MV Mesh panels are designed to support both front and rear service. An advanced IP65 protection ensures the MV Mesh panels will perform flawlessly in any weather condition.
MV MESH SERIES FEATURES
Lightweight
High Brightness
IP65 Protection
High Transparency
Features

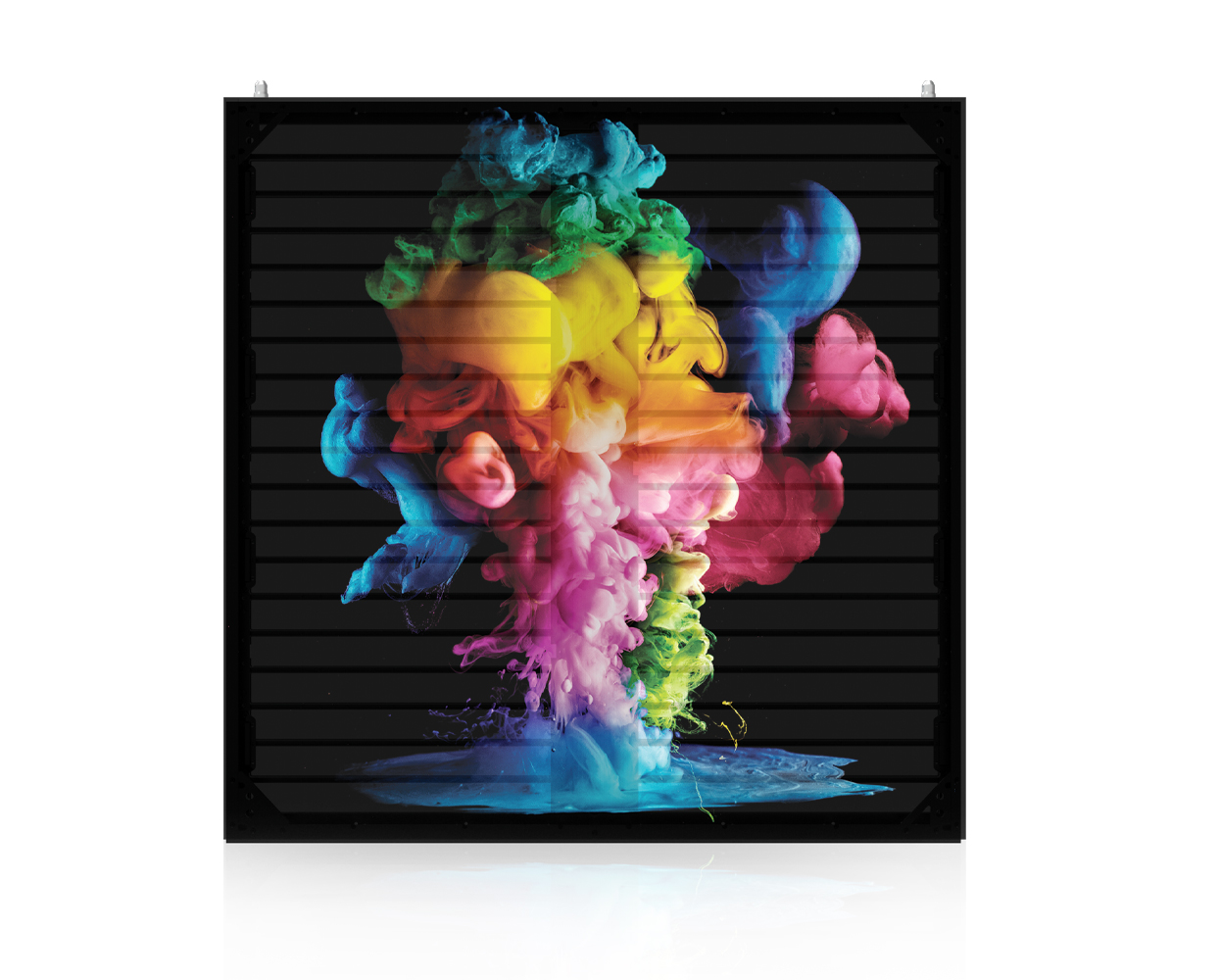

High Brightness

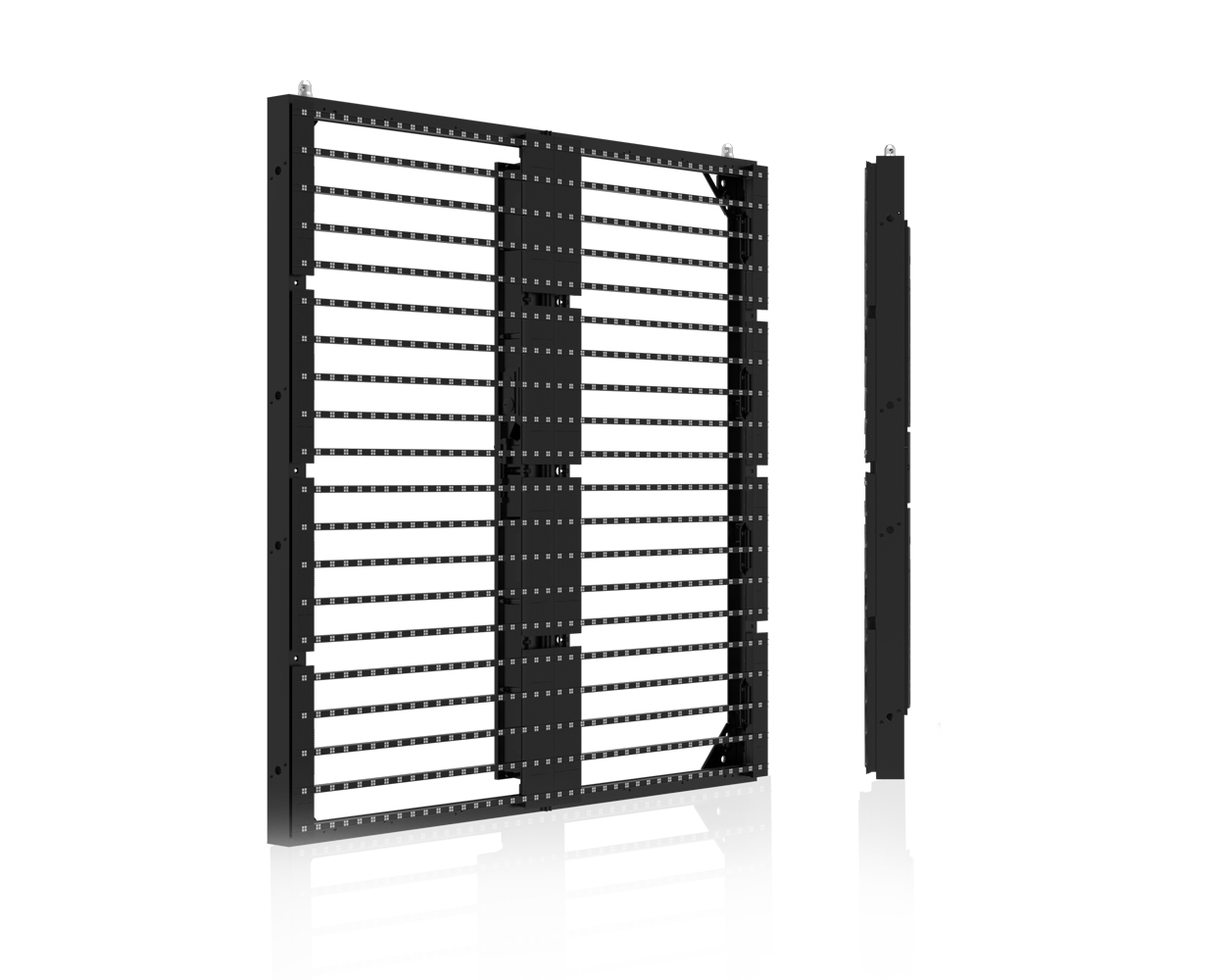

High Transparency

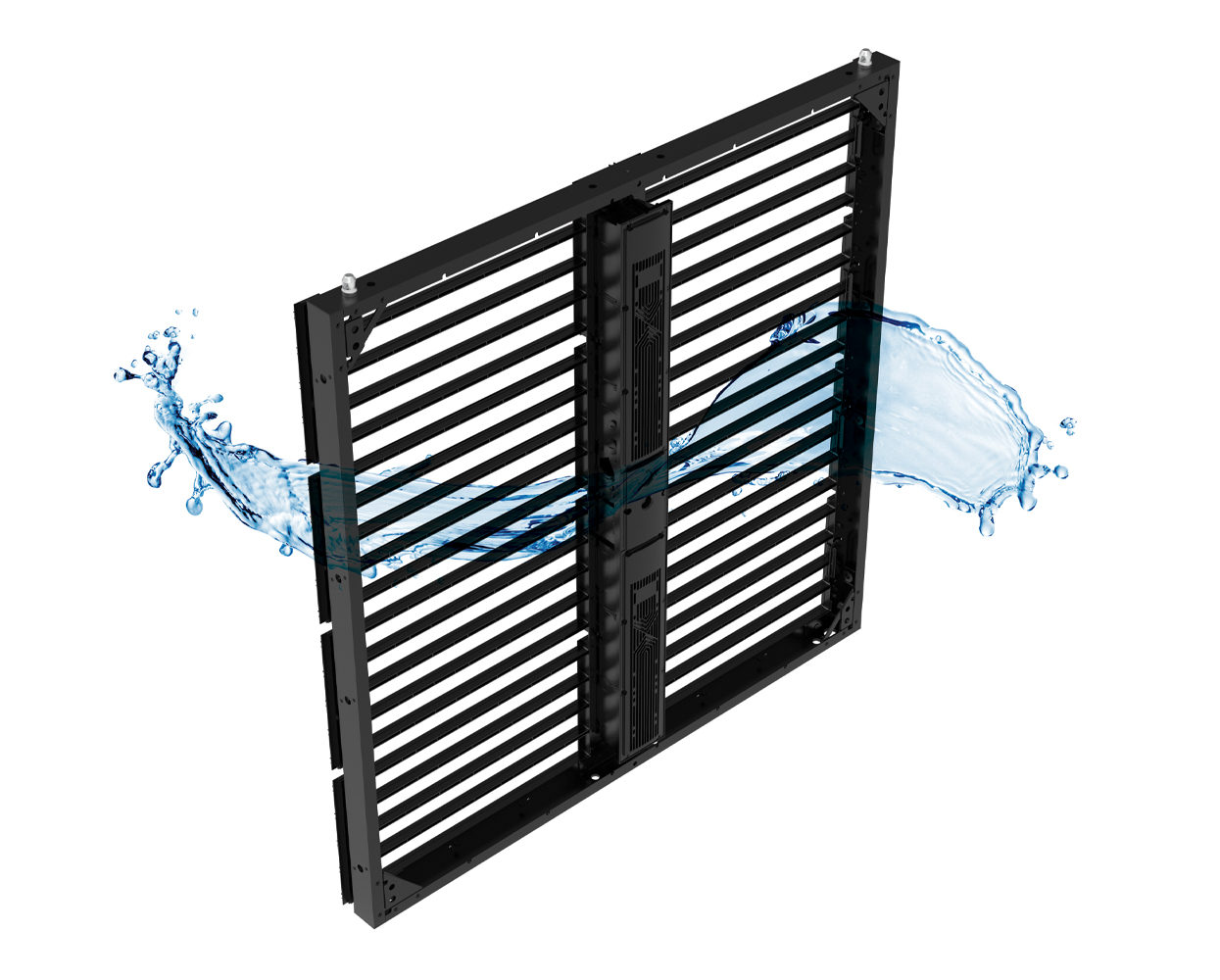

Advanced IP65 Protection

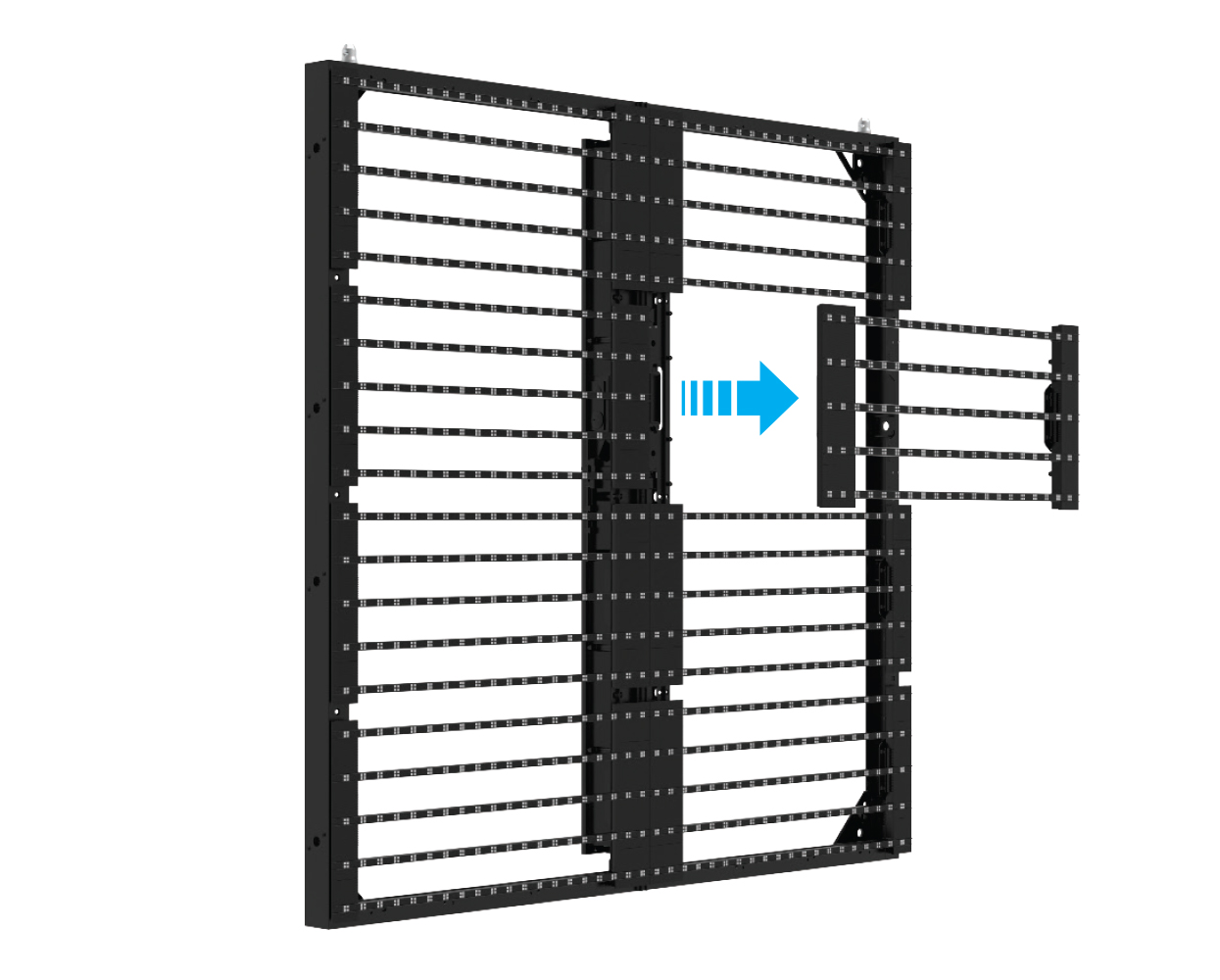

Easy Front & Rear Maintenance

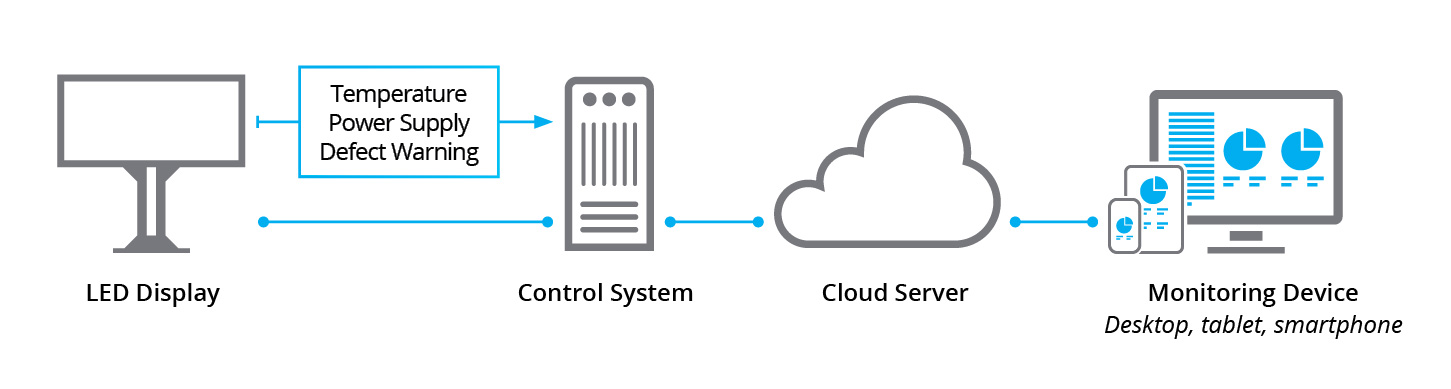

Advanced Display Monitoring System
Advanced Display Monitoring System (DMS) allows remote real-time monitoring of the display´s key working conditions and functionality from anywhere around the globe. Requiring only standard Internet connection, the cloud server automatically collects data and sends report alerts to the operator via email/text. The operator can log into the system remotely and check the live conditions of the screen – temperature, power supply, etc.
PRODUCT SPECIFICATIONS
| Model | MV Mesh Pro Outdoor P15/31 | MV Mesh Lite Outdoor P15/31 | MV Mesh Pro Outdoor P16/16 | MV Mesh Lite Outdoor P16/16 |
| Series | MV Mesh | MV Mesh | MV Mesh | MV Mesh |
| Pixel Pitch (mm) | 15.6 (H)- 31.25 (V) mm | 15.6 (H)- 31.25 (V) mm | 16.6 mm | 16.6 mm |
| Environment | Outdoor | Outdoor | Outdoor | Outdoor |
| LED Configuration | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD |
| Max Brightness | 5,000 nits | 5,000 nits | 7,000 nits | 7,000 nits |
| Refresh Rate | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz |
| Viewing Angle | 160 / 127 | 160 / 127 | 160 / 120 | 160 / 120 |
| Cabinet Weight | 11.28 Kg | 11.28 Kg | 11.28 Kg | 11.28 Kg |
| Dimensions Width (mm) | 1000 mm | 1000 mm | 1000 mm | 1000 mm |
| Dimensions Height (mm) | 1000 mm | 1000 mm | 1000 mm | 1000 mm |
| Dimensions Depth (mm) | 85 mm | 85 mm | 85 mm | 85 mm |
| Cabinet Resolution | 64 x 32 Pixels | 64 x 32 Pixels | 60 x 60 Pixels | 60 x 60 Pixels |
| Max Power Consumption / m2 | 600 W/m² | 600 W/m² | 630 W/m² | 630 W/m² |
| Avg Power Consumption / m2 | 200 W/m² | 200 W/m² | 210 W/m² | 210 W/m² |
| Max Power Consumption / Panel | 600 W/panel | 600 W/panel | 630 W/panel | 630 W/panel |
| Avg Power Consumption / Panel | 200 W/panel | 200 W/panel | 210 W/panel | 210 W/panel |
| Transparency | 80% | 80% | 70% | 70% |
| Curving | N/A | N/A | N/A | N/A |
| Operating Power Source | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz |
| Operating Temperature | -20°C ~ +50°C | -20°C ~ +50°C | -20°C ~ +50°C | -20°C ~ +50°C |
| Ingress Protection | IP65 | IP65 | IP65 | IP65 |
| Verification | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM |
| Application | Install | Install | Install | Install |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model | MV Mesh Pro Outdoor P25/50 | MV Mesh Lite Outdoor P25/50 |
| Series | MV Mesh | MV Mesh |
| Pixel Pitch (mm) | 25 mm | 25 mm |
| Environment | Outdoor | Outdoor |
| LED Configuration | 3 IN 1 SMD | 3 IN 1 SMD |
| Max Brightness | 5,000 nits | 5,000 nits |
| Refresh Rate | ≤3,840 Hz | ≤3,840 Hz |
| Viewing Angle | 160 / 112 | 160 / 112 |
| Cabinet Weight | 11.5 Kg | 11.5 Kg |
| Dimensions Width (mm) | 1000 mm | 1000 mm |
| Dimensions Height (mm) | 1000 mm | 1000 mm |
| Dimensions Depth (mm) | 85.1 mm | 85.1 mm |
| Cabinet Resolution | 40 x 20 Pixels | 40 x 20 Pixels |
| Max Power Consumption / m2 | 600 W/m² | 600 W/m² |
| Avg Power Consumption / m2 | 200 W/m² | 200 W/m² |
| Max Power Consumption / Panel | 600 W/panel | 600 W/panel |
| Avg Power Consumption / Panel | 200 W/panel | 200 W/panel |
| Transparency | 70% | 70% |
| Curving | N/A | N/A |
| Operating Power Source | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz |
| Operating Temperature | -20°C ~ +50°C | -20°C ~ +50°C |
| Ingress Protection | IP65 | IP65 |
| Verification | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM |
| Application | Install | Install |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |

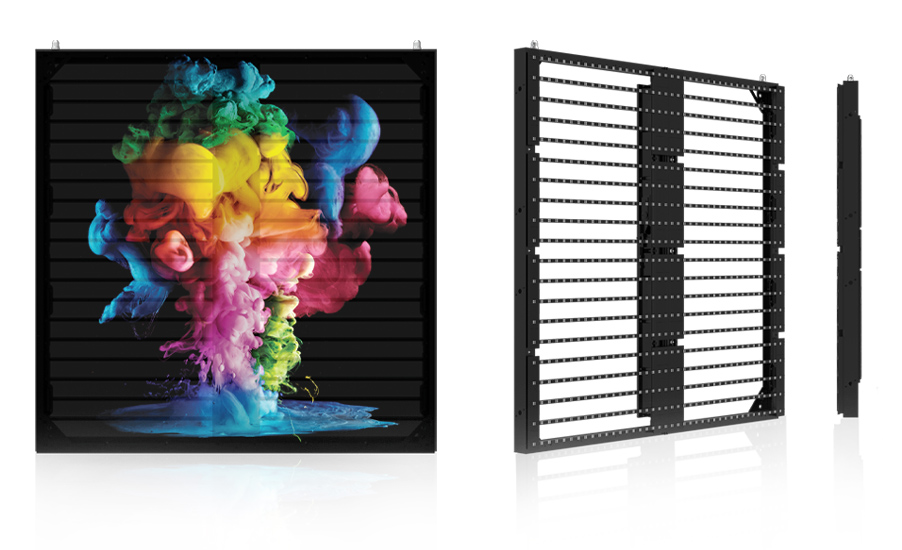

| Model | MV Mesh Max Outdoor P15/31 | MV Mesh Max Outdoor P16/16 | MV Mesh Max Outdoor P25/50 |
| Series | MV Mesh | MV Mesh | MV Mesh |
| Pixel Pitch (mm) | 15.6 (H)- 31.25 (V) mm | 16.6 mm | 25 mm |
| Environment | Outdoor | Outdoor | Outdoor |
| LED Configuration | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD |
| Max Brightness | 8,000 nits | 10,000 nits | 8,000 nits |
| Refresh Rate | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz |
| Viewing Angle | 160 / 127 | 160 / 120 | 160 / 112 |
| Cabinet Weight | 11.28 Kg | 11.28 Kg | 11.5 Kg |
| Dimensions Width (mm) | 1000 mm | 1000 mm | 1000 mm |
| Dimensions Height (mm) | 1000 mm | 1000 mm | 1000 mm |
| Dimensions Depth (mm) | 85 mm | 85 mm | 85.1 mm |
| Cabinet Resolution | 64 x 32 Pixels | 60 x 60 Pixels | 40 x 20 Pixels |
| Max Power Consumption / m2 | 570 W/m² | 660 W/m² | 570 W/m² |
| Avg Power Consumption / m2 | 190 W/m² | 220 W/m² | 190 W/m² |
| Max Power Consumption / Panel | 570 W/panel | 660 W/panel | 570 W/panel |
| Avg Power Consumption / Panel | 190 W/panel | 220 W/panel | 190 W/panel |
| Transparency | 80% | 70% | 70% |
| Curving | N/A | N/A | N/A |
| Operating Power Source | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz |
| Operating Temperature | -20°C ~ +50°C | -20°C ~ +50°C | -20°C ~ +50°C |
| Ingress Protection | IP65 | IP65 | IP65 |
| Verification | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM |
| Application | Install | Install | Install |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
